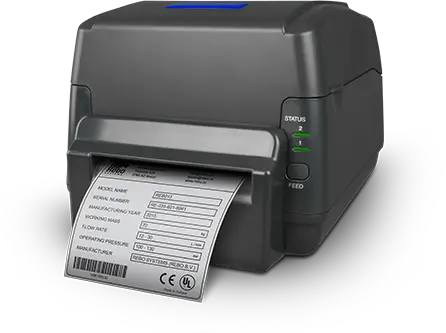

SMS-430 Professional Sign & Label Printer
The SMS-430 is a strong, reliable sign and label workhorse. Capable of producing labels from 13mm up to 100mm wide and in over 40 different quality materials, the systems high definition output is ideal for even the smallest of text and label details.
Supplied with Microsoft® approved NiceLabel software and thousands of industrial graphics, the SMS-430 is a single solution for an enormous range of sign and labelling requirements.
Professional labelling
From health and safety signage to data base connected labels, the SMS-400 can deliver both simple and sophisticated solutions. Produce your own machine plates, pipe marking, safety instructions, cable marking and more!
Compact and User-friendly
All of our systems are delivered with NiceLabel Pro software; a leading design and production software that is both powerful and easy to use. NiceLabel is Microsoft approved, so there are no issues with installations on company networks.
Discover the versatility
The SMS-430 is compatible with over 40 different materials for every application including: cable and wire marking, high or low temperatures, oily and difficult surfaces, permanent or removable adhesives, mild or aggressive chemical resistance and more…
MORE THAN JUST TAGS
Explore the SMS TAG-ID2 brochure
Suitable for the following applications
- Warehouse & Location labels
- Pipe Marking
- Machine & Equipment ID
- LEAN & 5S
- Safety Instructions
- Inspection Labels
- Maintenance Labels
- Machine Plates
- Part Numbers
- GHS Labels
- Wire & Cable marking
- Tags
Specifications
Printer
- Printer type :– Direct thermal & Thermal transfer
- Resolution :– 300 dpi
- Print speed :– 2 ~ 4ips
- Print length :– Max 100”(2540mm) / Min 0.2” (5mm)
- Print width :– Max 4.1”(104mm)
- Dimensions :– L 278mm x W 220mm x H 187mm
- Weight :– 2, 4kg

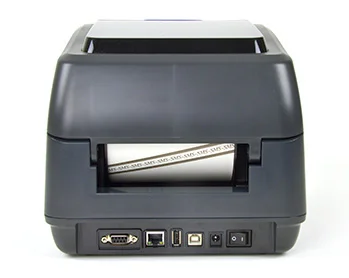

- Connectivity :– Standard : Centronics, RS-232, USB, Ethernet | Optional : Bluetooth, WiFi
- Operation interface :– 2x LED light (Power/Ready) / 1x button (Feed)
- Sensors :– 1x Media gap /1x “Reflective” (movable) / 1x “Transmissive” / 1x “Printhead up” / 1x “Ribbon out”
Power
- Input voltage :– 100-240V50-60HZ
- Output voltage :– DC Output : 24V, 3.75A
Environment
- Operating temperature :– 41℉~104℉ (5℃~40℃)
- Operation humidity :– 0% – 90%, non-condensing
- Storage temperature :– -4℉ ~ 140℉ (-20℃~60℃)
- Environmental compliance :– CE, FCC, UL/cULus, CCC, RoHS, BSMI

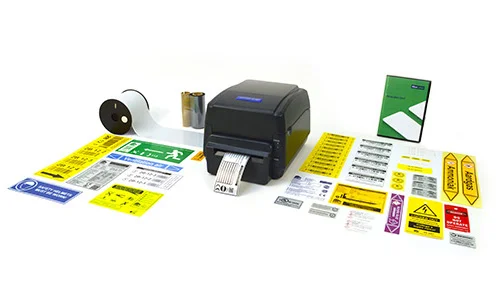

Supplies
Tape
Standard materials
- Industrial Vinyl (E300) :– Standard 3-5 year, perfect for most applications.
- Premium Vinyl (ST700) :– High quality 5-7 year, for higher durability.
- High-Tack (HT700) :– High tack adhesive, ideal for difficult surfaces like wood, concrete, oil and low friction plastics.
- Polyester (PT700) :– High tack adhesive, high temperature, low halide – ideal for machine plates and pipes.
- High Temperature Tape (H250) :– High tack adhesive and extra high temperature resistance.
- Cold Weather Tape (CW200) :– Good adhesion to extremely cold surfaces.
Special materials*
- Removable tape (R300) :– Removable tape for temporary signs.
- Reflective tape (RT500) :– Reflective tape for indoor and outdoor usage.
- Fluorescent tape (FL500) :– Fluorescent tape with a very high visibility.
- Photoluminescent tape (RG500) :– Glow-in-the-dark tape for signs that need to remain visible after a power cut.
- Tags (T100) :– Non-adhesive, untearable tags. Available in continuous and die-cut materials.
- Wire-Wraps (WI100) :– Self laminating, wrap around cable and wire marking.
- Cable Tags (EC100) :– High quality cable and hose tags, fixed with cable ties.
- Cable Sleeves / Shrink Tubes (ES100) :– Shrink tubing for cable and wire marking – high quality 3:1 in a range of sizes and colours.
- Raised Profile Labels (RL100) :– Alternative for engraved plates. Create your own Raised Profile Labels at a lower cost.
Width
Max. 4.3”(110mm)
Ribbon
Type
Wax, Resin, Wax/Resin
